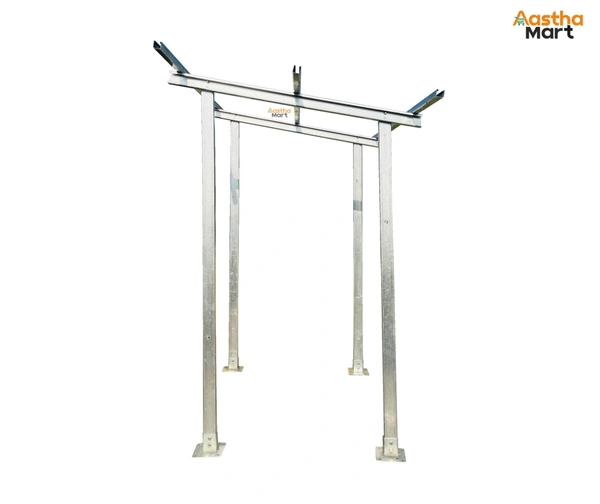

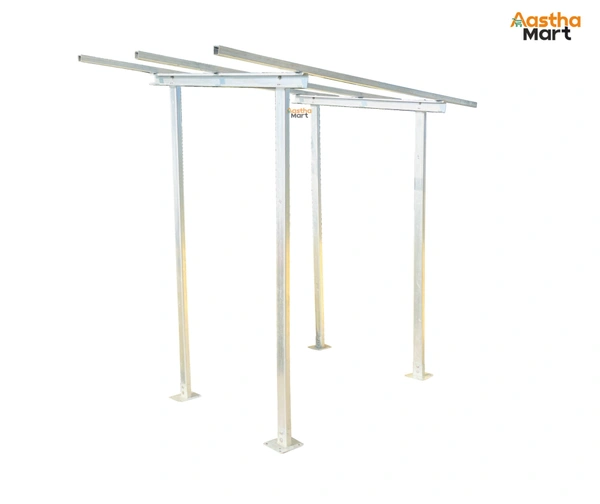

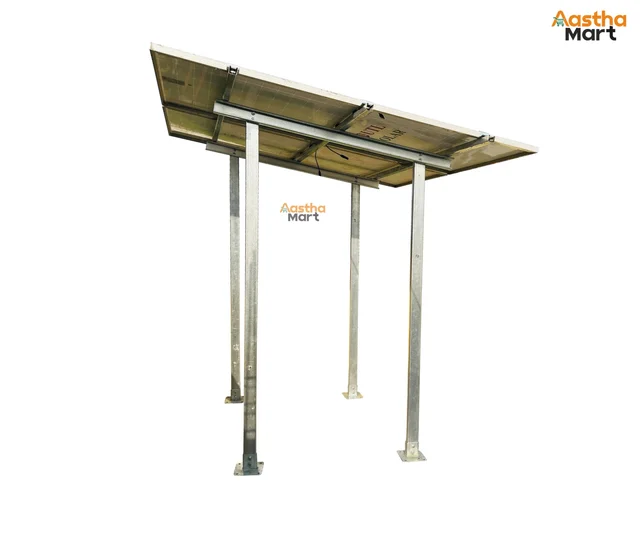

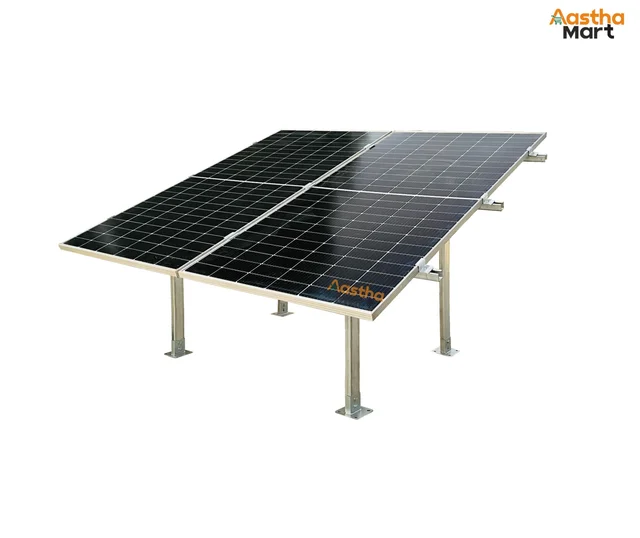

2 Solar Panels High Rise GI C-Channel Panel Mounting Structure

Introducing High Rise Solar Panel Mounting GI Structure 15x40x80x40x15  with 2 mm thickness specifically designed for 2 panels with a power range of 300-650W. This sturdy and durable structure is made from high-quality galvanized iron, ensuring long-lasting performance and protection against corrosion. It will support 300W, 450W, 550W, 600W and above 2 Panels.

• High Rise design structure, improves solar efficiency while using less amount of roof space. Solar panels are placed at a height of 7 feet above ground level. You can use your entire rooftop space to decorate gardens and plants.
• 3 Purlin for extra protection from heavy wind. U Channel 3 Purlins will  prevent panels from cracks.  The mounting structure is designed to securely hold and position the solar panels, maximizing their exposure to sunlight for optimal energy generation. Its adjustable design allows for easy installation and customization according to your specific requirements.
• With its robust construction and compatibility with a wide range of solar panels, our Solar Panel Mounting GI Structure offers a reliable and efficient solution for your solar power system. Invest in this reliable mounting structure to enhance the performance and longevity of your solar panels.
• Hot Dip G.I End Clamp & Middle Clamp, SS Allen bolt. 10mm Bolt Fasteners and heavy plain washers.
• Easy to install with all accessories.


Package Details

C Channel (15x40x80x40x15x2mm)
Front Leg 83 Inch 2 No.
Back Leg 90 Inch 2 No.
Rafter 63 Inch 2 No.

U Channel (40x40x40x2mm)
Purlin (Support) 97 Inch 3 No.

G.I. Base Plate 150*150mm 4 No.
Hot Dip G.I  Z (End) Clamp 6 No.
Hot Dip G.I  U (Mid) Clamp 3 No.
G.I. Spring Nut 9 No.
SS Allen Bolt 40mm 9 No.
G.I. Nut and Bolt 10x20mm  23 No.
G.I. Plain Washer 63 No.
Fasteners 10mm 17 No.
L Key Handle 6mm 1 No.
Tilt Angle 9 to 11 Degree
Approx. Weight 57 Kg
