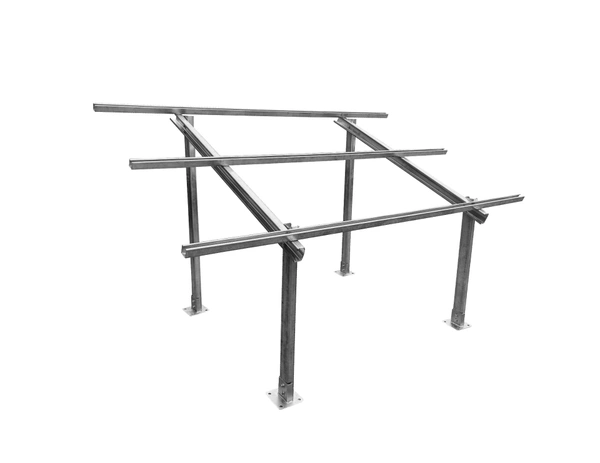

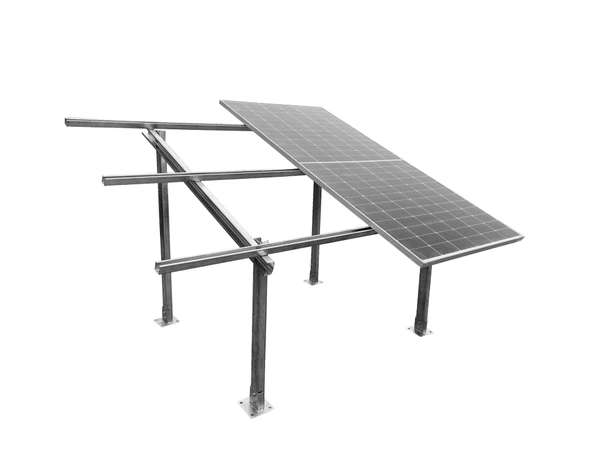

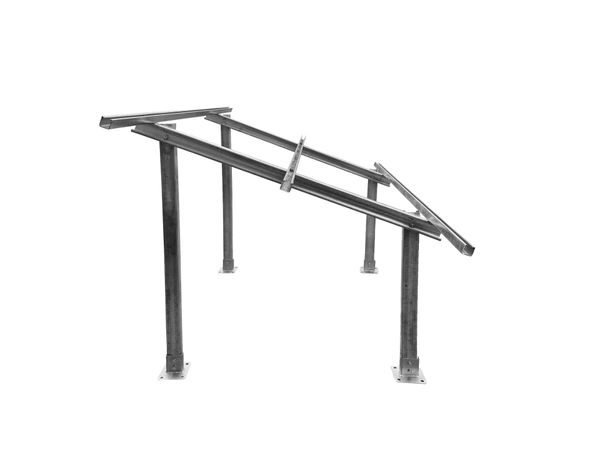

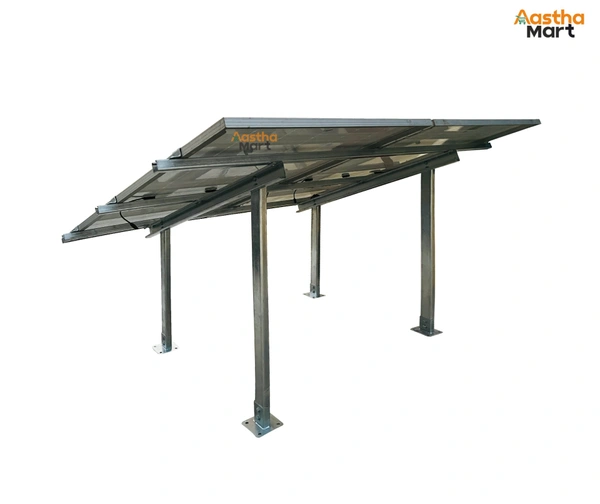

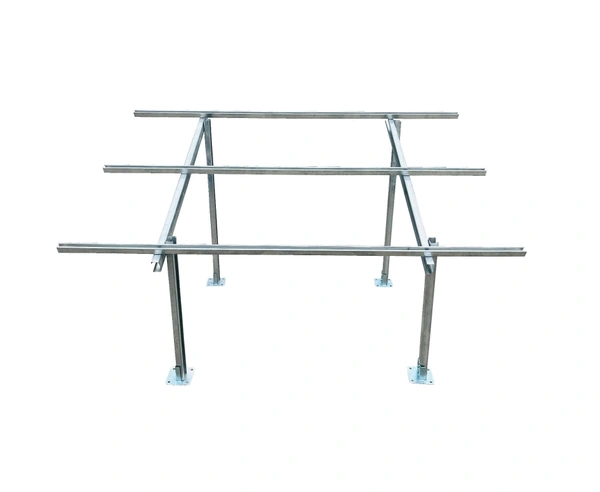

G.I 2 Solar Panels Mounting Structure

Introducing our Solar Panel Mounting GI Structure 15x40x80x40x15  with 2 mm thickness specifically designed for 2 panels with a power range of 300-650W. This sturdy and durable structure is made from high-quality galvanized iron, ensuring long-lasting performance and protection against corrosion. It will support 335W, 450W, 540W, 650W and above 2 Panels.

• 3 Purlin for extra protection from heavy wind. U Channel 3 Purlins will prevent panels from cracks.  The mounting structure is designed to securely hold and position the solar panels, maximizing their exposure to sunlight for optimal energy generation. Its adjustable design allows for easy installation and customization according to your specific requirements.
• With its robust construction and compatibility with a wide range of solar panels, our Solar Panel Mounting GI Structure offers a reliable and efficient solution for your solar power system. Invest in this reliable mounting structure to enhance the performance and longevity of your solar panels.
• Hot Dip G.I End Clamp & Middle Clamp, SS Allen bolt. 10mm Bolt Fasteners and heavy plain washers.
• Easy to install with all accessories.
• Tilt Angle 18-21 degree


Package Details

C Channel (15x40x80x40x15x2mm)
Front Leg 36 Inch 2 No.
Back Leg 50 Inch 2 No.
Rafter 63 Inch 2 No.

U Channel (40x40x40x2mm)
Purlin (Support) 97 Inch 3 No.

G.I. Base Plate 4 No.
Hot Dip G.I End (Z) Clamp 6 No.
Hot Dip G.I U Mid (U) Clamp 3 No.
G.I. Spring Nut 9 No.
SS Allen Bolt 40mm 9 No.
G.I. Nut and Bolt 10x25mm 23 No.
G.I. Plain Washer 63 No.
Fasteners 10mm 16 No.
T Handle L key 6mm 1 No.
Approx. Weight 45Kg

Manufactured & Packed By:
Aastha Power Solution
# 5, Near Hocky Stadium
RK Puram to Kailash Road
Karnal, Haryana Pin 132001
M. 98134-34999
     98124-34999
contact@aasthamart.com

Country Of Origin
Bharat
