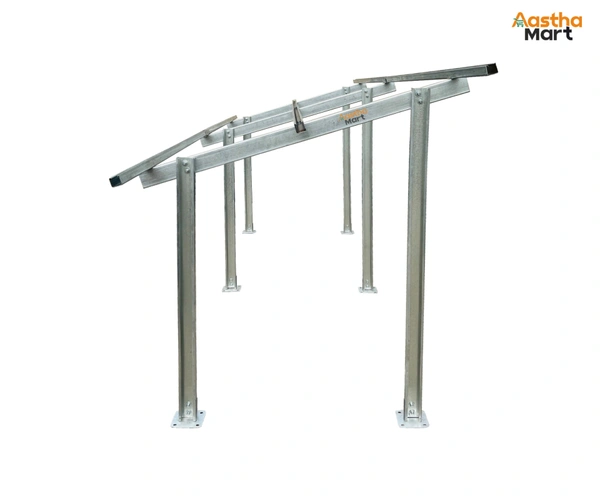

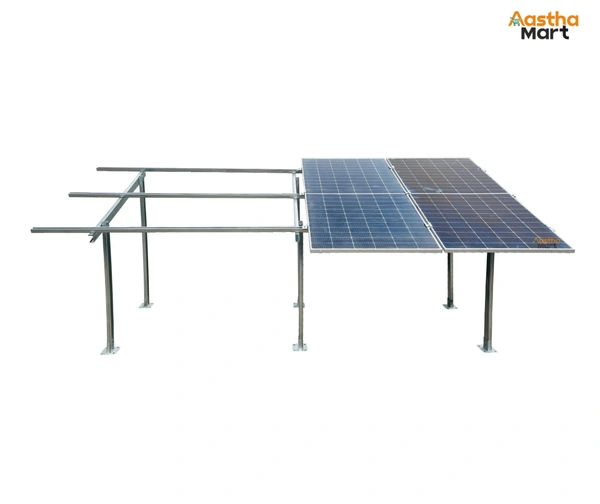

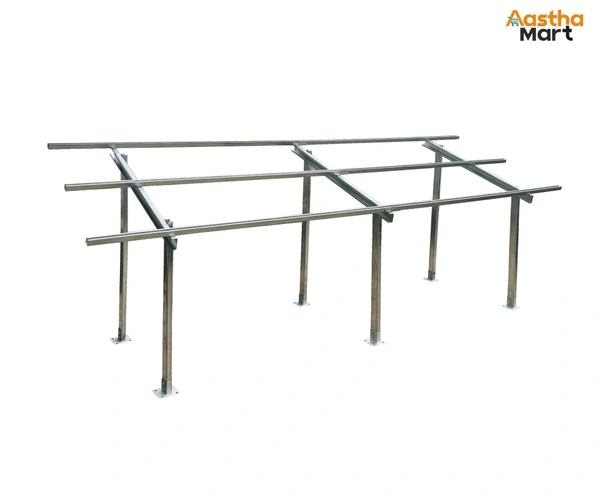

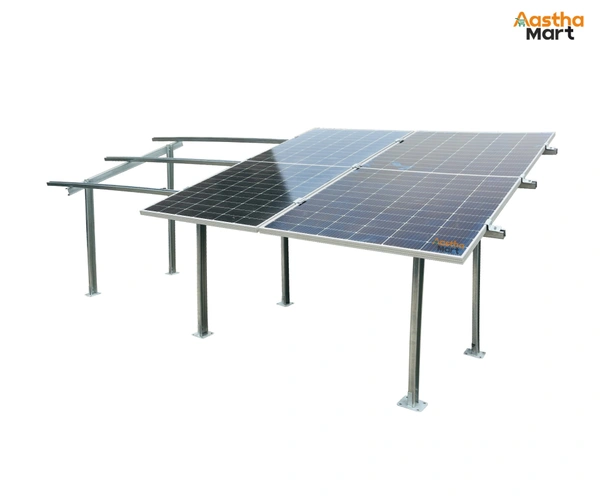

G.I 4 Solar Panels Mounting Structure

Introducing our Solar Panel Mounting GI Structure 15x40x80x40x15 with 2 mm thickness specifically designed for 4 panels with a power range from 300-650W. This sturdy and durable structure is made from high-quality galvanized iron, ensuring long-lasting performance and protection against corrosion. It will support 300W, 450W, 550W, 650W and above 4 Panels.

• 3 Purlin for extra protection from heavy wind. U Channel 3 Purlins will prevent panels from cracks.  The mounting structure is designed to securely hold and position the solar panels, maximizing their exposure to sunlight for optimal energy generation. Its adjustable design allows for easy installation and customization according to your specific requirements.
• With its robust construction and compatibility with a wide range of solar panels, our Solar Panel Mounting GI Structure offers a reliable and efficient solution for your solar power system. Invest in this reliable mounting structure to enhance the performance and longevity of your solar panels.
• Hot Dip G.I End Clamp & Middle Clamp, SS Alen bolt. 10mm Bolt Fastners and heavy plain washers.
• Easy to install with all accessories.

Package Details

C Channel (15x40x80x40x15 thickness 2mm)
Front Leg 36 Inch 3 No.
Back Leg  50 Inch 3 No.
Rafter 63 Inch 3 No.

U Channel (40x40x40 thickness 2mm)
Purlin (Support) 96 Inch 6 No.

G.I Purlin Jointer 3 No.
G.I. Base Plate 150*150mm 6 No.
Hot Dip G.I End (Z) Clamp 35mm 6 No.
Hot Dip G.I Mid (U) Clamp 35mm 9 No.
G.I. Spring Nut 15 No.
SS Allen Bolt 40mm 15 No.
G.I. Nut and Bolt 10x25mm 43 No.
G.I. Plain Washer 111 No.
Fasteners 10mm 25 No.
Tilt Angle 18 to 21 Degree
T Handle L key 6mm 1 No.
Weight 77 Kg

NOTE- 2 Line Layout (2x2) (2x3) (2x4) (2x5) (2x6) structure are also available at selected locations as per requirement.

Manufactured & Packed By
Aastha Power Solution
# 5, Near Hocky Stadium
RK Puram to Kailash Road
Karnal, Haryana Pin 132001
M. 98134-34999
     98124-34999
contact@aasthamart.com

Country Of Origin
Bharat
