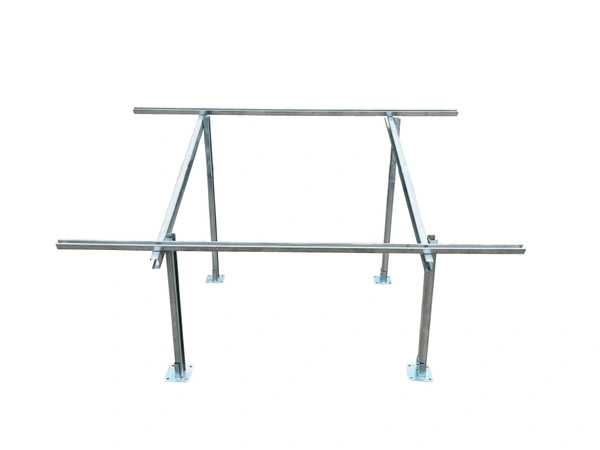

G.I. U Channel 2 Solar Panel Mounting Structure

 Introducing our Solar Panel Mounting 41x 41 x 2mm GI Structure designed specifically for 2 panels with a power range of 300-650W. This sturdy and durable structure is made from high-quality galvanized iron, ensuring long-lasting performance and protection against corrosion. It will support 335W, 450W, 540W, 570W and above 2 Panels.

• 2 Purlins will prevent panels from cracks. The mounting structure is designed to securely hold and position the solar panels, maximizing their exposure to sunlight for optimal energy generation. Its adjustable design allows for easy installation and customization according to your specific requirements.
• With its robust construction and compatibility with a wide range of solar panels, our Solar Panel Mounting GI Structure offers a reliable and efficient solution for your solar power system. Invest in this reliable mounting structure to enhance the performance and longevity of your solar panels.
• Hot Dip G.I End clamp & middle Clamp, SS Alen bolt. Fixy 10mm Fastners and heavy plain washers.
• Selectable Tilt angle 18-21 degree


Package Details

U Channels 40x40x40x2 mm
Front Leg U Channel 27 Inch 2 No.
Back Leg U Channel 43 Inch 2 No.
Purlin (Support) 97 Inch 2 No.
Rafter 53 Inch 2 No.
Base Plate 4 No.
Hot Dip Z (End) Clamp 35mm 4 No.
Hot Dip U (Mid) Clamp 35mm 2 No.
G.I. Degree Hanger 4 No.
G.I. Spring Nut 6 No.
SS Allen Bolt 40mm 6 No.
G.I. Nut and Bolt 10x25mm 25 No.
G.I. Nut and Bolt 10x60mm   4 No.
G.I. Plain Washer 65 No.
Fasteners 10mm 16 No.
Approx Weight 31KG
