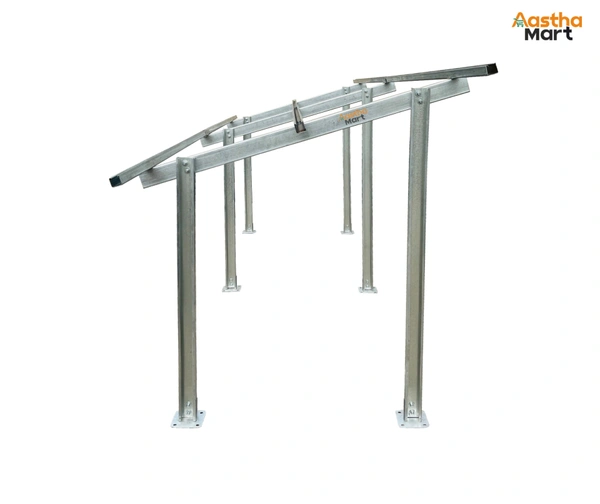

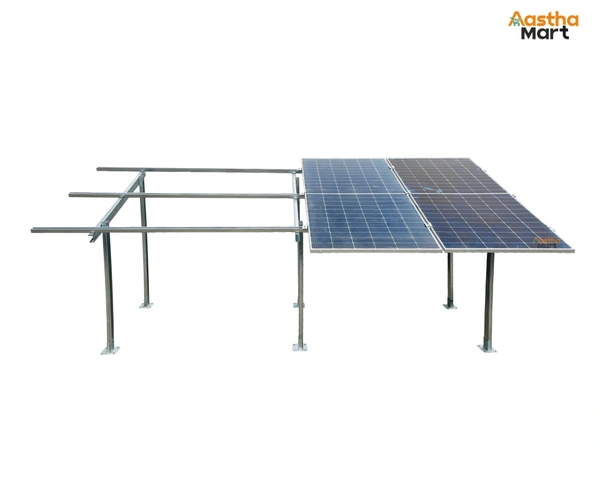

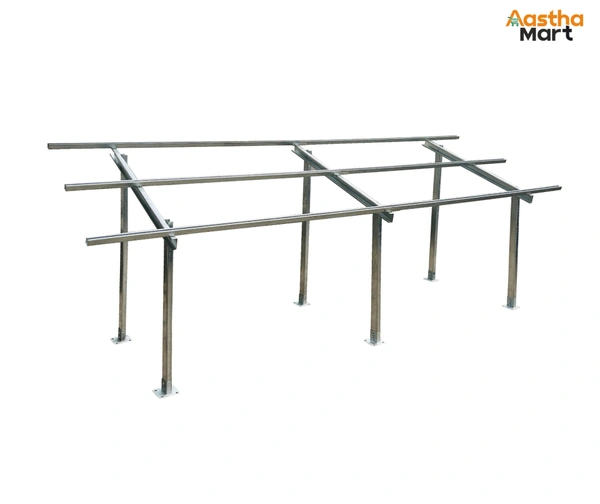

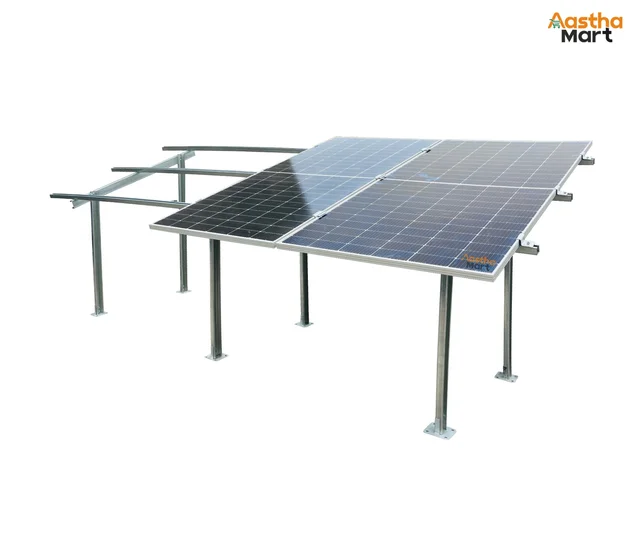

High Rise Pre G.I 6 Solar Panel Mounting Structure

Introducing High Rise Pre G.I. Solar Panel Mounting GI Structure 15x40x80x40x15 with 2 mm thickness specifically designed for 6 panels with a power range of 300-650W. This sturdy and durable structure is made from high-quality galvanized iron, ensuring long-lasting performance and protection against corrosion. It will support 300W, 450W, 550W, 650W and above 6 Panels.

• High Rise design structure, improves solar efficiency while using less amount of roof space. Solar panels are placed at a height of 7 feet above ground level. You can use your entire rooftop space to decorate gardens and plants.
• 3 Purlin for extra protection from heavy wind. U Channel 3 Purlins will prevent panels from cracks. The mounting structure is designed to securely hold and position the solar panels, maximizing their exposure to sunlight for optimal energy generation. Its adjustable design allows for easy installation and customization according to your specific requirements.
• With its robust construction and compatibility with a wide range of solar panels, our Solar Panel Mounting GI Structure offers a reliable and efficient solution for your solar power system. Invest in this reliable mounting structure to enhance the performance and longevity of your solar panels.
• Hot Dip G.I End Clamp & Middle Clamp, SS Allen bolt. 10mm Bolt Fasteners and heavy plain washers.
• Easy to install with all accessories.
• Tilt angle 9 to 11 degree
• Space needed- North to South 8 feet, East to West 24 feet


Package Details

C Channel (15x40x80x40x15x2mm)
Front Leg 83 Inch 4 No.
Back  Leg 90 Inch 4 No.
Rafter 63 Inch 4 No.

U Channel (40x40x40x2mm)
Purlin (Support) 96 Inch 9 No.

Cross Leg Support 96 Inch 2 No.
G.I. Purlin Jointer 6 No.
G.I. Base Plate 185*185*5 mm 8 No.
Hot Dip G.I End (Z) Clamp   6 No.
Hot Dip G.I Mid (U) Clamp 15 No.
G.I. Spring Nut 21 No.
SS Allen Bolt 40mm 21 No.
S.S. Nut and Bolt 10x25mm 33No.

G.I Nut and Bolt 10×25mm 36 No.

G.I. Plain Washer 105 No.
Fixy Fasteners 10mm 33 No.
T-Handle L Key 6mm 1 No.
Approx. Weight 146Kg


• NOTE-
  1.  Kindly read all details and space needed before order this product.
  2. All panels will be installed in one line East to West.
  3.  2 Lines UP & Down (2x3=6 Panels) (2x4=8 Panels) (2x5=10 panels) (2x6=12 panels) structure are also available at selected locations as per requirement. kindly contact us for details.

Manufactured & Packed By:
Aastha Power Solution
# 5, Near Hocky Stadium
RK Puram to Kailash Road
Karnal, Haryana Pin 132001
M. 98134-34999
     98124-34999
contact@aasthamart.com

Country Of Origin
Bharat
