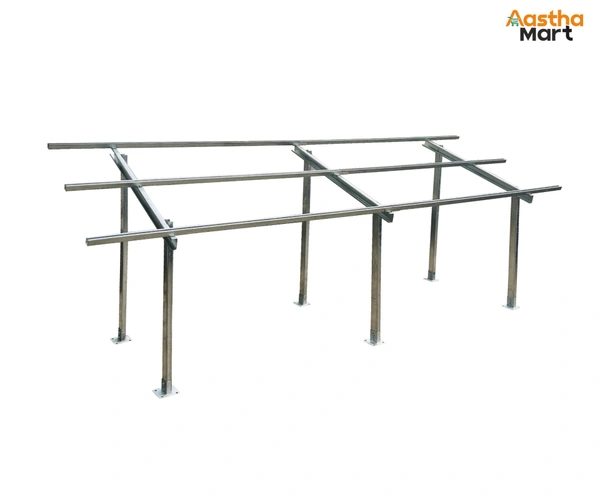

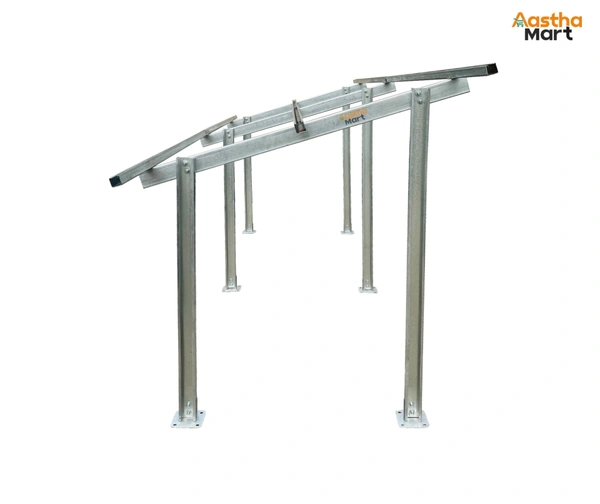

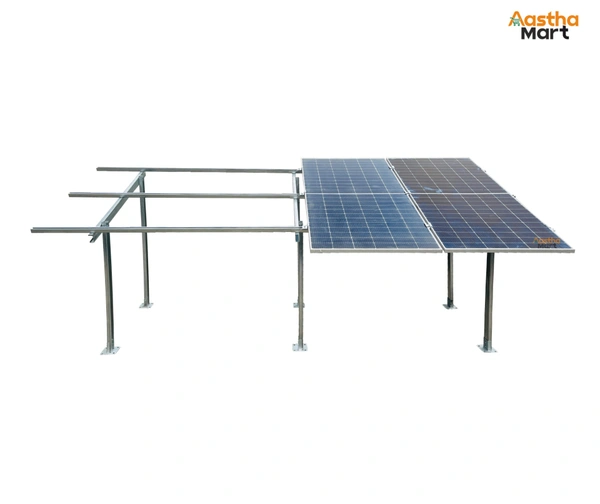

High Rise Pre G.I. 8 Solar Panel Mounting Structure

Introducing High Rise Pre G.I. Solar Panel Mounting Structure 15x40x80x40x15 with 2 mm thickness specifically designed for 8 panels with a power range of 300-630W. This sturdy and durable structure is made from high-quality galvanized iron, ensuring long-lasting performance and protection against corrosion. It will support 300W, 450W, 550W, 630W 8 Panels.

• High Rise design structure, improves solar efficiency while using less amount of roof space. Solar panels are placed at a height of 7 feet above ground level. You can use your entire rooftop space to decorate gardens and plants.
• 3 Purlin for extra protection from heavy wind. U Channel 3 Purlins will prevent panels from cracks.  The mounting structure is designed to securely hold and position the solar panels, maximizing their exposure to sunlight for optimal energy generation. Its adjustable design allows for easy installation and customization according to your specific requirements.
• With its robust construction and compatibility with a wide range of solar panels, our Solar Panel Mounting GI Structure offers a reliable and efficient solution for your solar power system. Invest in this reliable mounting structure to enhance the performance and longevity of your solar panels.
• Hot Dip G.I End Clamp & Middle Clamp, SS Allen bolt. 10mm Bolt Fasteners and heavy plain washers.
• Tilt angle 9 to 11 degree
• Space needed- North to South 8 feet, East to West 32 feet
• Easy to install comes with all accessories.


Package Details

C Channel (15x40x80x40x15x2mm)
Front Leg 83 Inch 5 No.
Back Leg 90 Inch 5 No.
Rafter 63 Inch 5 No.

U Channel (40x40x40x2mm)
Purlin (Support) 96 Inch 12 No.
G.I. Purlin Jointer 9 No.
Cross Leg Support 96 Inch 2 No.
G.I. Base Plate 185*185*5 mm 10 No.
Hot Dip G.I End (Z) Clamp   6 No.
Hot Dip G.I Mid (C) Clamp 21 No.
G.I. Spring Nut 27 No.
S.S. Allen Bolt 40mm 31 No.

S.S. Not Bolt 10*25 mm 45 No.

GI Nut and Bolt 10x25 mm 43 No.
G.I. Plain Washer 236 No.
Fasteners 10mm 41 No.
T-Handle L Key 6mm 1 No.
Tilt Angle 9 to 11 Degree
Approx. Weight 203Kg

NOTE-
1.  Kindly read all details and space needed before order this product.
2. All panels will be installed in one line East to West.
3.  2 Lines UP & Down (2x3=6 Panels) (2x4=8 Panels) (2x5=10 panels) (2x6=12 panels) structure are also available at selected locations as per requirement. kindly contact us for details.

Manufactured & Packed By:
Aastha Power Solution
# 5, Near Hocky Stadium
RK Puram to Kailash Road
Karnal, Haryana Pin 132001
M. 98134-34999
     98124-34999
contact@aasthamart.com

Country Of Origin
Bharat
