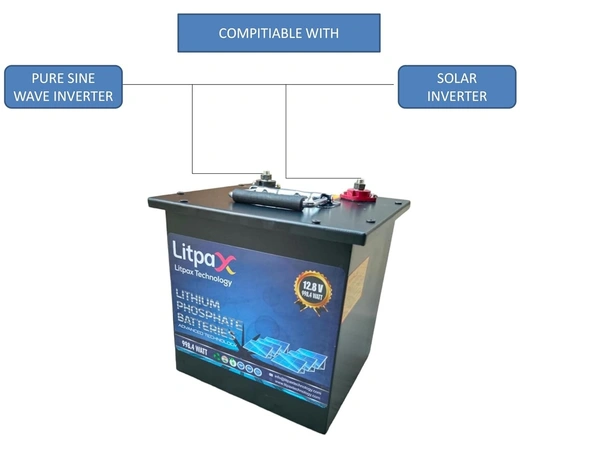

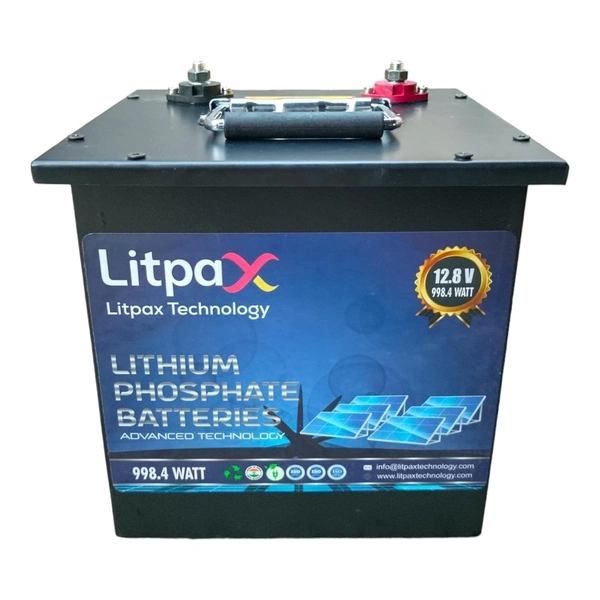

Litpax 12.8V 78Ah 998.4W Lithium Phosphate Battery with BMS and 3 Years Warranty

• High Performance: Best reliable power storage for solar and wind energy systems, UPS backup, and inverter.
• Long Life: Offers an impressive 2000 life cycles, ensuring durability and cost-effectiveness over time. cylindrical cells.
• Efficient Charging: Integrated Battery Management System (BMS) optimizes charging and discharging, maximizing efficiency and lifespan.
• Versatile Compatibility: Designed to work seamlessly with a range of renewable energy setups and backup power systems.
• Reliable Power Supply: Provides stable and consistent power output, essential for critical applications and off-grid installations.


Battery Capacity
998.4Wh

Battery Type
Lithium Phosphate

Cell Type
Cylindrical Cells

Capacity
78Ah

Operation DOD Range
95%

Nominal Voltage
12.8V

Battery Configuration
4S 13P

Upper Cut Voltage
14.4V ± 0.02V

Lower Cut Voltage
10.8V ± 0.02V

Rated Charging Current (Standard)
up to 30A

Peak Charging Current
78A (1C)

Rated Discharge Current
78A (1C)

Peak Discharge Current
78A (1C) for 10 Seconds

Protection
Over Voltage, Under Voltage, Short Circuit, Over Temperature (Charge & Discharge)

BMS (Battery Management System)
BMS Inbuilt

Operating Ambient temperature - Charging
0 to 50ºC     (Cell Temperature)

Operating Ambient temperature - Discharging
-20 to 60C   (Cell Temperature)

Lifecycle @ Ambient 25ºC
2000 Cycle

Cycle Definition
One Complete Charging and Discharging is Considered as 1 Cycle

Self Discharge
2.25% / Month

Warranty
3 Years
