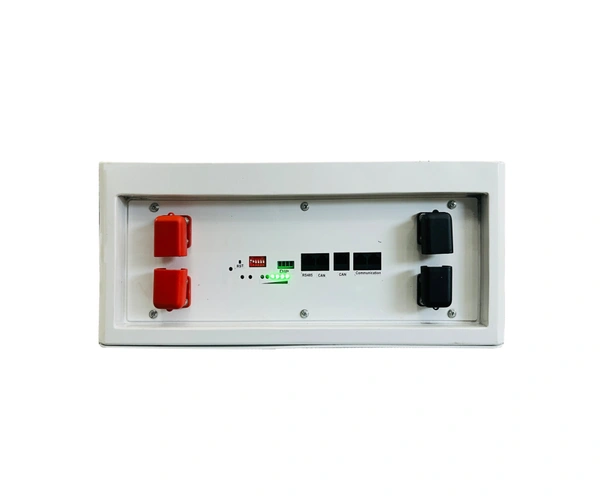

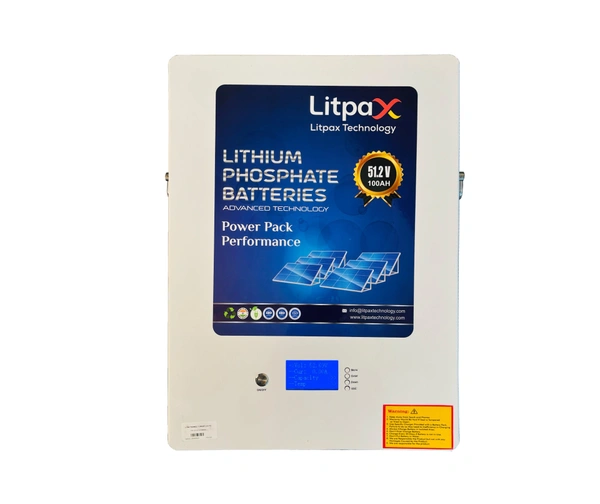

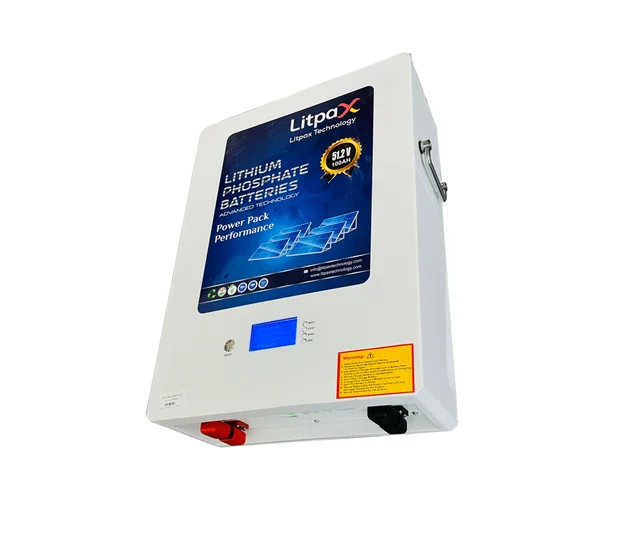

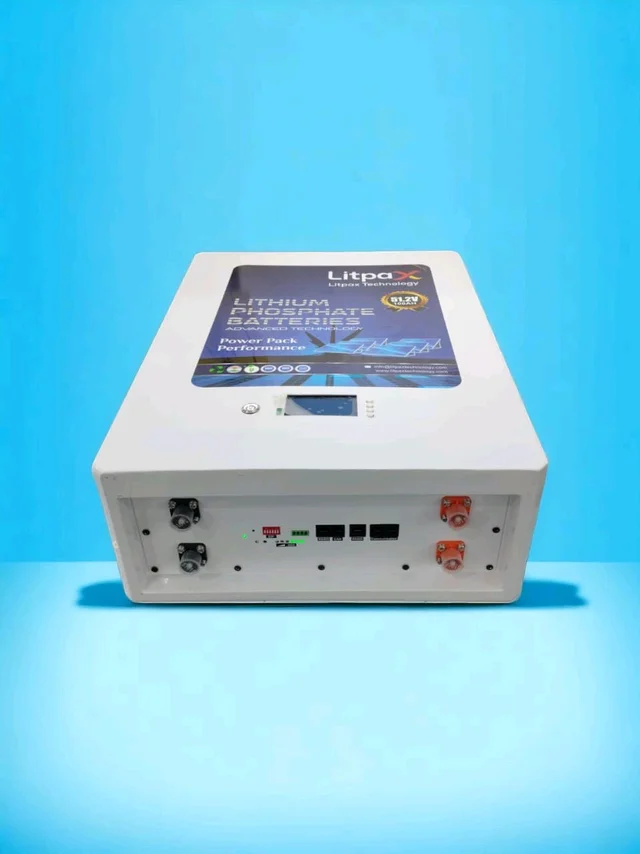

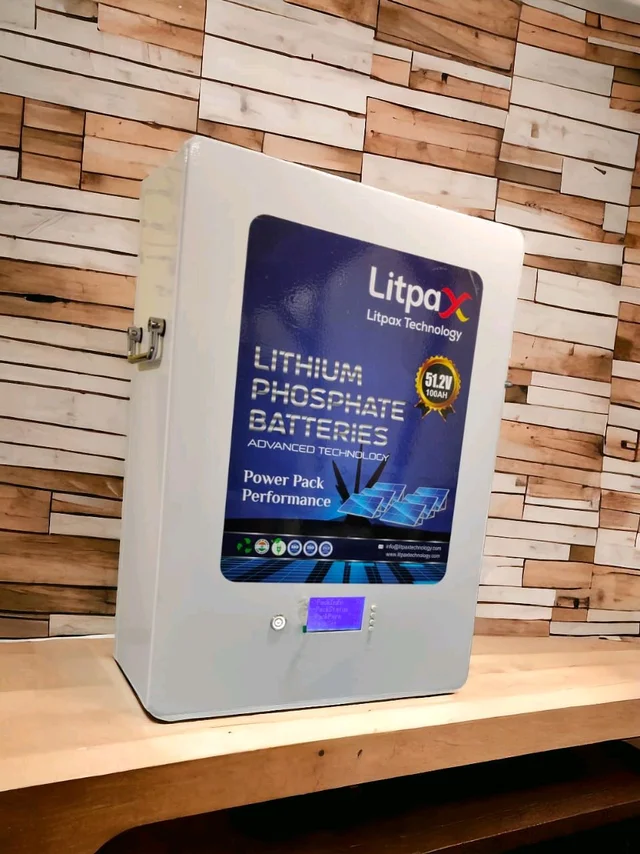

Litpax 51.2V 100Ah Lithium Phosphate Battery with Smart BMS - 5 Years Warranty

• High Capacity: Enjoy a 100ah capacity, providing power for extended usage with 3000 Life Cycle
• Efficient Lithium Phosphate Technology: Benefit from the latest in lithium battery technology, ensuring efficient energy storage and delivery.
• Stable Voltage Output: Experience a reliable and stable 51.2V output for your inverter, ensuring consistent performance.
• Fast Charging: Quick charging capability allows you to recharge the battery rapidly, minimizing downtime.
• Wall Mount Design
• Compact and Lightweight: Designed for convenience, this battery is both compact and lightweight, making it easy to handle and install.
• Versatile Compatibility: Compatible with a range of inverters, providing flexibility for various applications.
• Built-in Protection Features: Enjoy peace of mind with built-in protection against overcharging, over-discharging, and short circuits.


Battery Capacity
5120Wh

Battery Type
Lithium Phosphate

Cell Type
Prismatic Cell

Capacity
100Ah

Operation DOD Range
95%

Nominal Voltage
51.2V

Upper Cut Voltage
58.4V ± 0.02V

Lower Cut Voltage
43.2V ± 0.02V

Rated Charging Current (Standard)
0.2C

Peak Charging Current
1C

Rated Discharge Current
2C

Peak Discharge Current
3C for 10 Seconds

Parallel Facility
Yes

Display
LCD

Protection
Over Voltage, Under Voltage, Short Circuit, Over Temperature (Charge & Discharge)

BMS (Battery Management System)
Smart BMS

Operating Ambient temperature - Charging
0 to 50ºC     (Cell Temperature)

Operating Ambient temperature - Discharging
-20 to 60C   (Cell Temperature)

Lifecycle @ Ambient 25ºC
3000 Cycle

Cycle Definition
One Complete Charging and Discharging is Considered as 1 Cycle

Self Discharge
2.25% / Month

Warranty
5 Years



Dispatch Time: 2-4 Days
