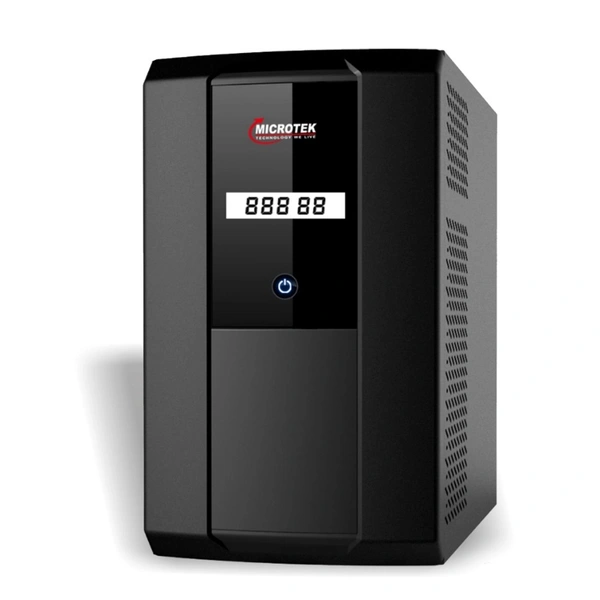

Microtek 2500+ 24V Pure Sine Wave Jumbo Home UPS

• Static UPS LCD Display.
• Generator Compatible.
• Safely suited to run Computers & Other IT Applications.
• DSC (Digital SIngle Controller) Based Intelli Pure Sinewave Technology.
• HLPO - Peak Load Peak Output, ensures High Peak Load Handling Capacity.
• ATM (Automatic Trickle Mode) Charging ensures Faster Battery Charging.
• Smart Overload Sense, Short Circuit & Over Temprature Protection.
• Best Suited for most High Capacity Sophisticated applications like: Air-Conditioner, Petrol Pump Nozzle, Photocopier, Dental Chair, Water Motor along with the regular Household and Office Appliances.

Capacity / Rating
2KVA / 1600W

Output Waveform /Power Factor
Pure Sinwave / 0.8

Nominal Battery Voltage
24V DC

Battery Charger
Boost Based PWM Controlled Multistage ATM (Automatic Trickle Mode) Charging

Recommended Battery Type / Battery AH
Tall-Tubular, Flat-Plate Lead Acid Battery / (100AH-180AH)**

Output Frequency / Output Voltage (Battery Mode)
50Hz+0.5Hz / 220+10%

Maximum Charging Current
15A(+3A)

Standard Input Voltage Range (Inverter Mode)
80V~295V

Narrow Input Voltage Range (UPS Mode)
180V~265V

Transfer Time From Mains to Battery (UPS Mode)
<15ms

Input Brown Out Voltage
80V+10V

Mains Bypass / Switch-Over
Rotary Bypass Switch / Automatic From Main>Backup & Backup>Mains

Separated O/P With TDR
 N/A

UPS Overload / Short Circuit Protection
>105% / >300%

Efficiency (Battery Mode)
>80%

Protection / Display
Low Battery Voltage, Battery Overcharge, Over Temp., Smart Overload Sense & Short Circuits / LCD Display

Environmental Parameters
Operating Temprature: 0~45*C  /  Acoustic Noise at 1 Mtr: <60dB
Relative Humidity: MAX 95% Non Condensing  /  Thermal Management: Integrated cooling (Fan & Heat sink)

Dimentions (LxWxH)
44.5x32x46 CM

Gross Weight
20 Kgs
