MSV 24/48V 60A 100VOC MPPT Solar Charge Controller SMU

Model No.
OD-MPPT-SMU-24/48 -100/60

Technology
MPPT

Product Series
OD-MPPT-SMU

Battery Operating Mode
24V/48V

SPV (Pmax)
2KW on 24V Battery
4KW on 48V Battery

Solar Input Voltage (VOC)
60V - 100V (for 24V Battery)
72V - 100V (for 48V Battery)

Battery Type
Lead- Acid (Tubular/SMF), Lithium PO4 Battery (Available on Demand)

Grid Disconnect
27.6V/55.2V

Grid Reconnect
24.4V/48.8V

Self-Power Consumption
<2W

Max Charging Current
60A

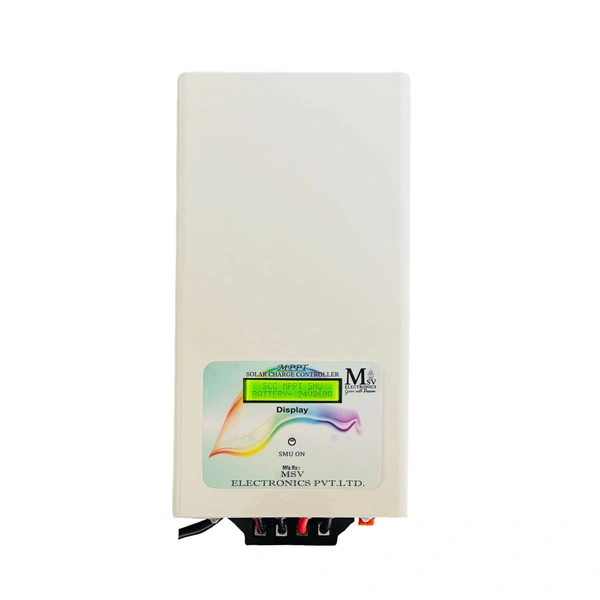

Display
16x2 Character Display

Parameters Displayed on LCD
Solar Voltage (Vsol), Solar Current (Isol), Solar Power (Sol PWR), Battery Voltage (Vbat), Charging Current (Ichg), Solar Panel Generated Unit, Power Save ON/OFF, Mains Connect/ Disconnect

Indications
Solar Reverse, Battery Reverse/Fuse Blown, SMU LED

SMU Connection
3 Screw Bakelite Connector /3 Core Cable (Mains) (P-N-E)

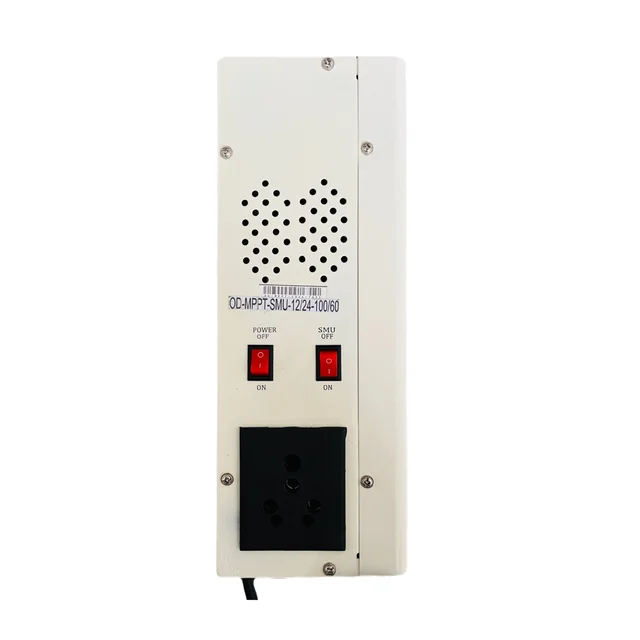

Switches
Power ON/OFF, SMU BYPASS

Solar Reverse Current Protection
Yes

Battery Reverse Protection
Yes

Fuse Protection
Yes (Externally Accessible)

Spare Fuse Provided
Yes (2 Fuse)

Switching Element
MOSFET

Efficiency
95%

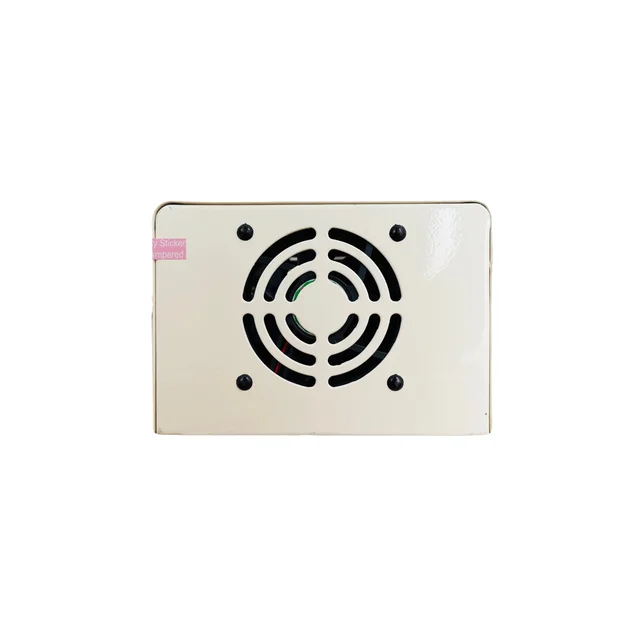

Cooling
Fan (Forced Air Cooling) with adaptive Controlling for Longer Life. Fan turns on once the Charging Current goes above 6A and turns off when it goes below 4A.

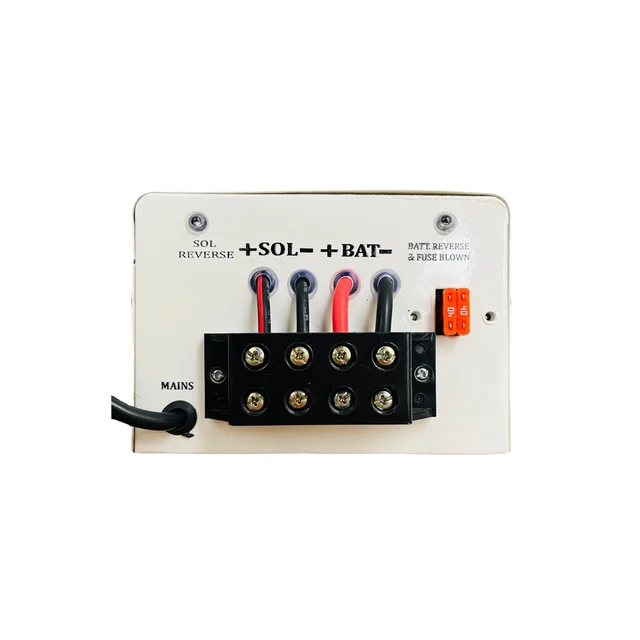

Connection
Bakelite Screw Terminal

Mounting Type
Wall Mounted

Product Dimensions (L*W*H)
30x16x12 CM

Packaging Dimensions (L*W*H)
35x20x16 CM

Weight
3 KG
