MSV E Rickshaw 48V 10A MPPT Solar Charger
₹ 3,400
₹ 4,800
29%
₹ 3,035.71
Exclusive of TaxYou will earn 34 points from this product

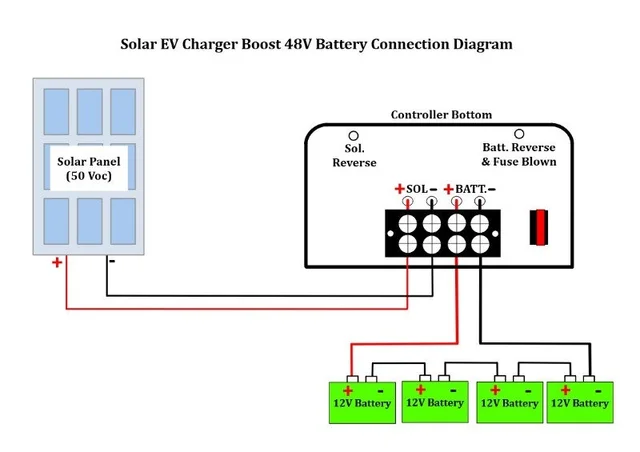

E Rikshaw is good employment for a common man. Driver has limited running kilometers availability. This controller will increase your running kilometers up to 2 times in a sunny day (Depend on weather and running habits) and it will also increase battery life. You need a 30 to 50VOC solar Panel (up to 600W). Controller will charge your 48V batteries by these panels in day time in stop and running also. You can use it by installing two or more Panels by connecting them in series up to 50V and maximum 600W. Now reduce your per kilometer running cost. It will be help in earn more money to you.
Technology | MPPT (Boost) |
Battery Operating Mode | 48V |
Solar Panel Support | 600W |
Solar Input Voltage (VOC Max.) | 50V (Open Circuit Voltage) |
Solar Input Voltage (VOC Min.) | 30V |
Battery Type | Lead- Acid (Tubular/SMF) Lithium PO4 Battery Compatible available on Demand |
Self-Power Consumption | <2W |
Max Charging Current | 10A |
Display | 16x2 Character Display (Continuous Working) Display Bakelite turns ON during the Charging Time only. |
Parameters Displayed on LCD | Solar Voltage (Vsol), Solar Current (Isol), Solar Power (Sol PWR), Battery Voltage |
(Vbat), Charging Current (Ichg), Solar Panel Generated Unit | |
Indications | Solar Reverse, Battery Reverse/Fuse Blown LED |
Switches | Power ON/OFF |
Solar Reverse Current Protection | Yes |
Battery Reverse Protection | Yes |
Fuse Protection | Yes (Externally Accessible) |
Spare Fuse Provided | Yes |
Switching Element | MOSFET |
Efficiency | Up to 95% |

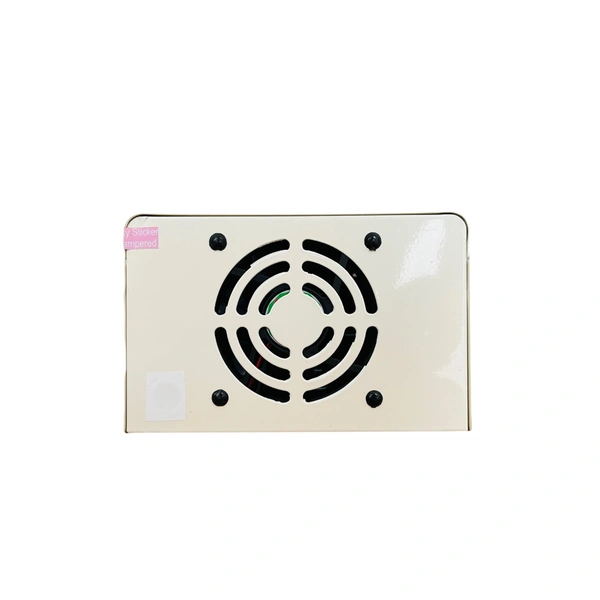

Cooling | Fan (Forced Air Cooling for Longer Life) |

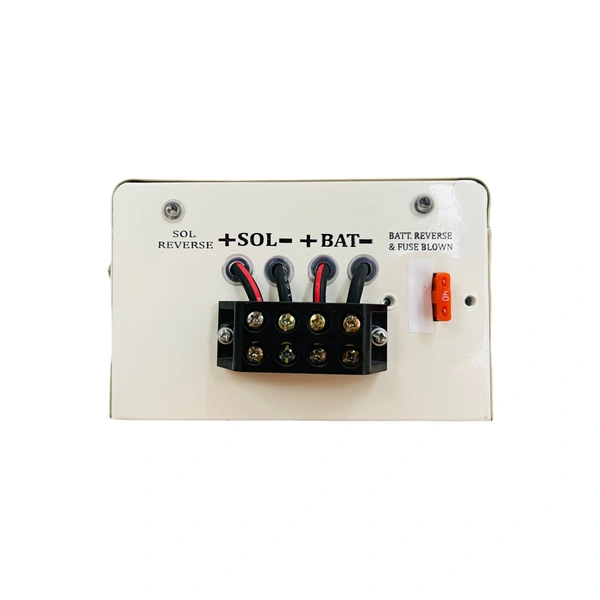

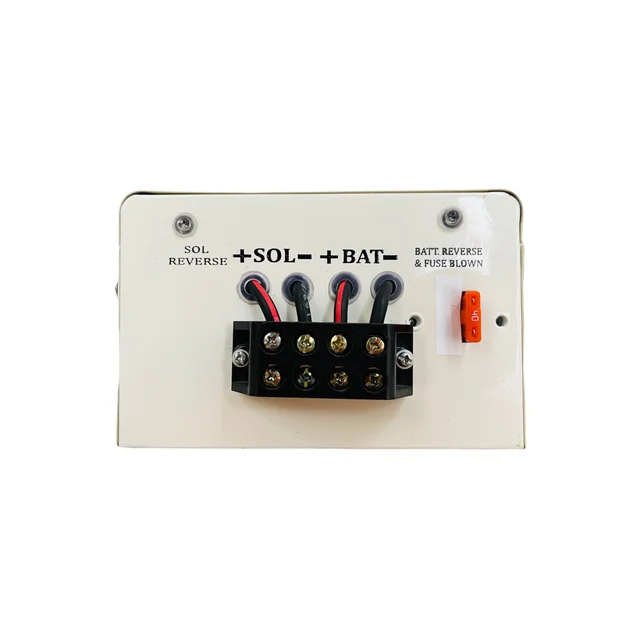

Connection | Bakelite Screw Terminal |
Mounting Type | Wall Mounted |
Temperature | 0˚C TO 55˚C |
Product Dimensions (L*W*H) | 18*16*10 CM |
Packaging Dimensions (L*W*H) | 22*22*14 CM |
Weight | 1.5 Kg |
Warranty | 1 Year |
Manufacturer | MSV Electronics Pvt. Ltd. Ghaziabad, U.P. |
Country of Origin | India |
