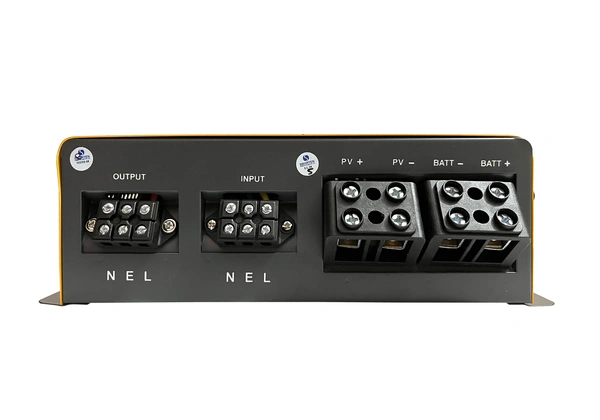

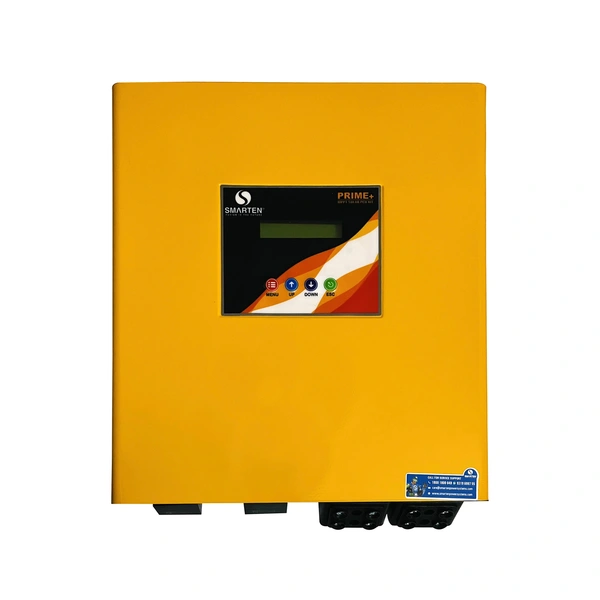

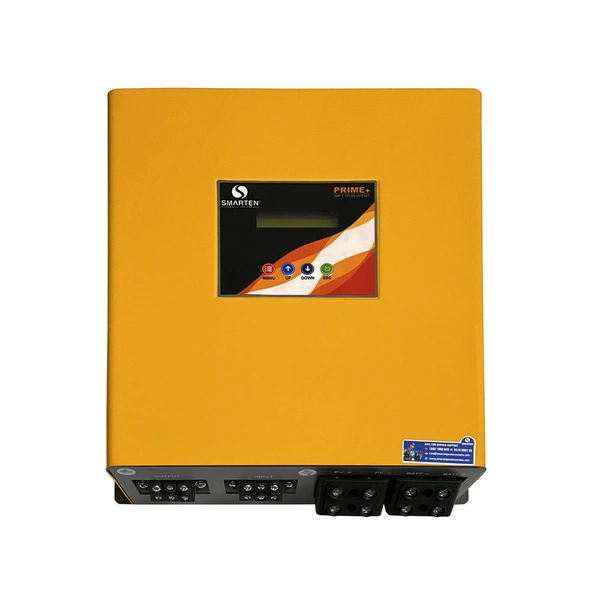

Smarten Prime+ 24/48V 50A MPPT Solar Charge Controller

Smarten Prime+ MPPT Solar Charge Controller is the best MPPT Charge Controller that extracts up to 100% power from panels and boosts current. However, PWM Solar charge controller, doesn't extract full power from panels.It supports LeadAcid, SMF, Tubular, Solar batteries and with 4 stage charging (Bulk, Absorption, Float & Equalize), It performs controlled charges and ensures longer battery life. MPPT charge controller circuit has >95% efficiency. This solar MPPT charge controller has been designed for Load Shedding mode, and you can connect your existing Inverter or UPS with it. When the battery voltage reaches 28/56V, After 10 minutes it will disconnect your AC Mains of existing Inverter so that entire load runs on battery. In evening, when solar power is low or battery voltage is less than DOD voltage, It will connect AC Mains/Grid, so that battery remains charged.

Battery DOD means BATTERY DEPTH OF DISCHARGE. It has 4 DOD setting. 20%, 30% 40% 50%. For Maximum Solar and Battery Use select DOD on 50%. If you select DOD on 50% it will use battery up to 22/44 V in day time when sufficient solar is available after that it will connect AC Mains. and disconnect AC mains after 10 minutes of Battery fully charged & solar power is available.
