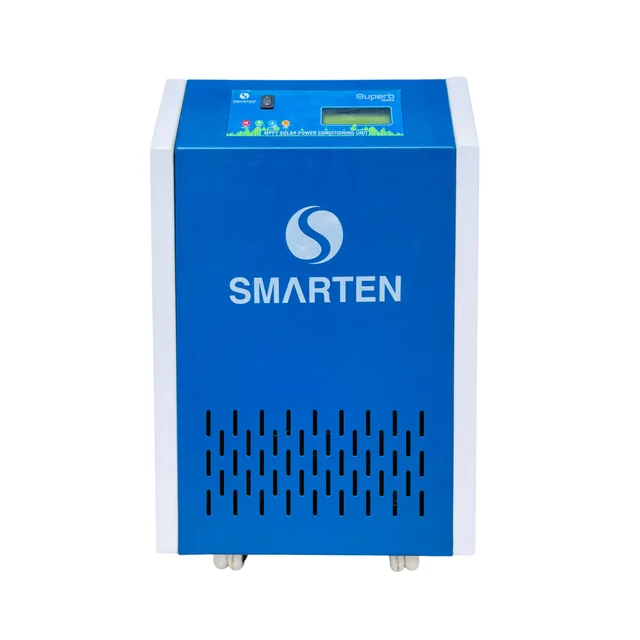

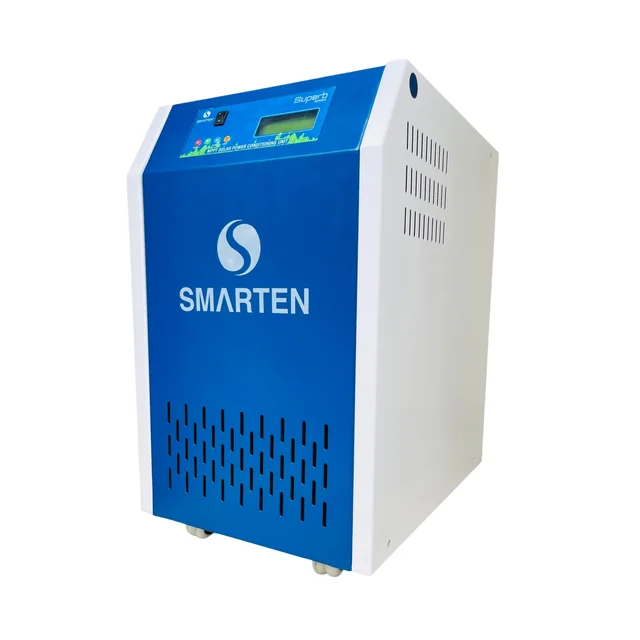

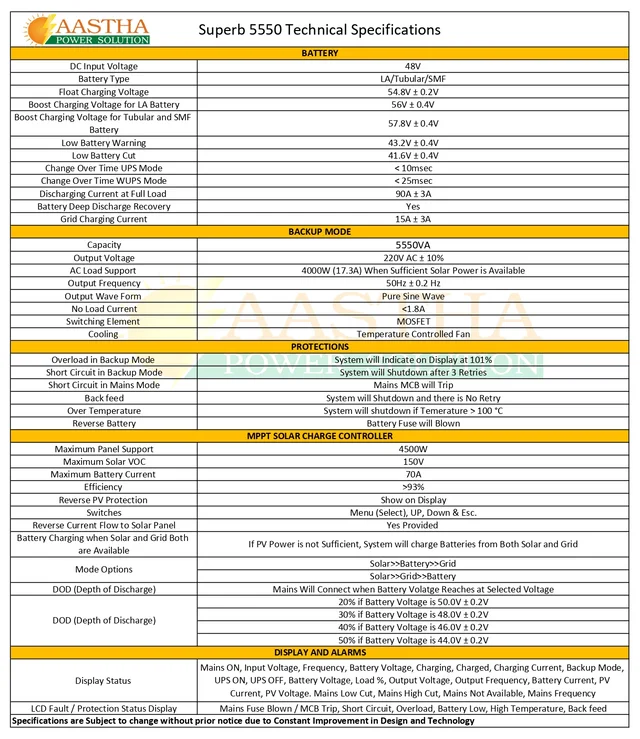

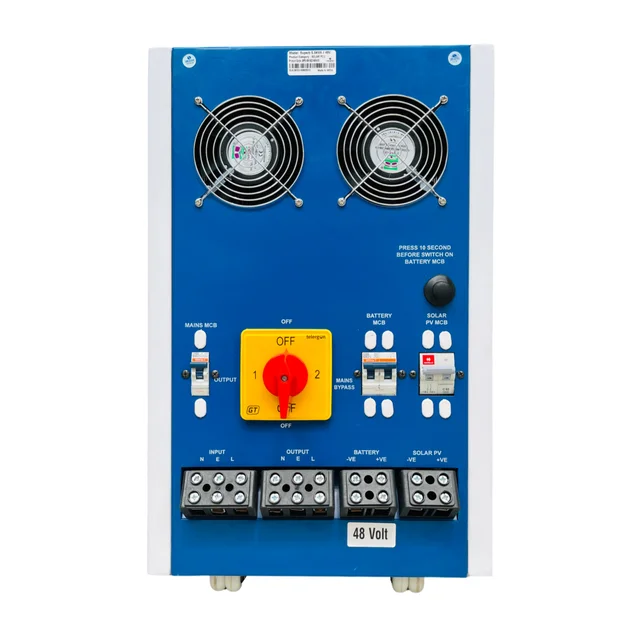

Smarten Superb+ 5550 5.5KVA 48V 70A MPPT Solar PCU

• Heavy duty Transformer Design
• Advanced MPPT Solar Technology
• 70A MPPT Solar Charge Controller
• VOC 150V
• 5000 Watt Panel Support
• Runs 2 HP submersible Pump
• Easily Runs 1.5 Ton AC
• 3 Priority Mode
• Grid Charging Enable/Disable For reduce Electricity Bills

LCD DISPLAY
Mains ON, Input Voltage, Frequency, Battery Voltage, Charging, Charged, Charging Current, Backup Mode, UPS ON, UPS OFF, Battery Voltage, Load %, Output Voltage, Output Frequency, Battery Current, PV Current, PV Voltage. Mains Low Cut, Mains High Cut, Mains Not Available, Mains Frequency
(Display Values can be different 2% from the RMS actual values)

SOLAR CHARGE CONTROLLER
70A  ± 3A MPPT Solar Charge Controller
VOC 150V  (Voltage Open Circuit)
Panel Support 5000W
450 to 575W  9 Panel Supports
MPPT to PV power connecting up to 15 seconds


OUTPUT  BACKUP MODE
Battery Low Cut warning 43.2V ± 0.2V
Battery Low Cut Off          41.6V ± 0.2V
No Load Current @ 24V     2A ± 0.2A
Wave form                         Pure Sine Wave
Frequency                          50 ± 0.1 Hz
Battery Disc. Current        90 ±2Amp.
AC Output Load                  17.3A
Over Load system Shutdown at 125% Load after approx. >60 Sec



AC MAINS MODE
Grid Charging Cur. (Tubular/LA) 15A DC ± 2A
Battery Boost Vol. Lead acid       56V ± 0.2V
Battery Boost Voltage SMF/TUB 58V ± 0.2V
Battery Float Voltage                    54.8V ± 0.2V
Battery Deep Discharge Recovery Yes
UPS Mode
Mains AC Low cut                          175V ± 10V
Mains AC Low cut recovery          185V ± 10V
Mains AC High cut                         265V ± 10V
Mains AC High cut recovery         255V ± 10V
W.UPS Mode
Mains AC low cut                            90V ± 10V
Mains AC Low cut recovery         110V ± 10V
Mains AC High cut                        295V ± 10V
Mains AC High cut recovery        285V ± 10V


MODE PRIORITY
Solar>>Battery>>Grid  First priority is Solar then Battery & Grid
Solar>>Grid>>Battery First priority is Solar then Grid & Battery


DOD SWITCH SELECTION (Battery Depth Of Discharge)
DOD 20%  when battery Voltage 50V ± 0.2V Mains Will be connected
DOD 30%  when battery Voltage 48V ± 0.2V Mains Will be connected
DOD 40%  when battery Voltage 46V ± 0.2V Mains Will be connected
DOD 50%  when battery Voltage 44V ± 0.2V Mains Will be connected


MAINS DISCONNECTED, CONNECTED SELECTION
If solar is available and battery reaches 56V ± 0.2V after <5 min. Mains will be disconnected,
When battery voltage reaches Permitted DOD voltage and solar power not available mains will be Connected.
NOTE:- This Condition is not applicable for Grid >> Solar >> Battery Condition.
