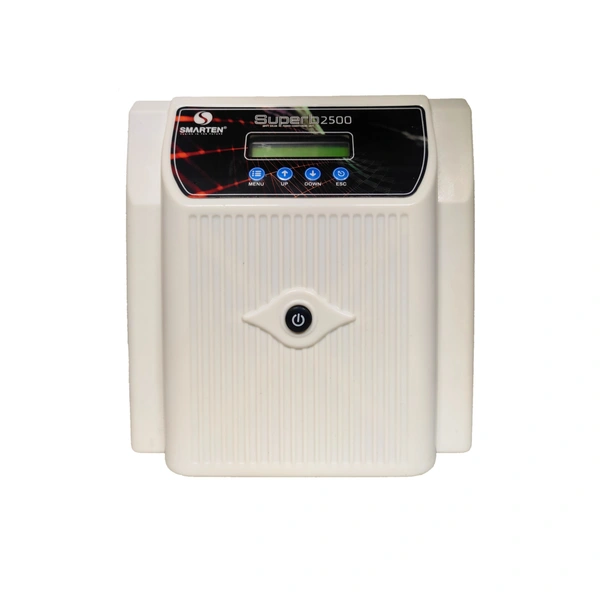

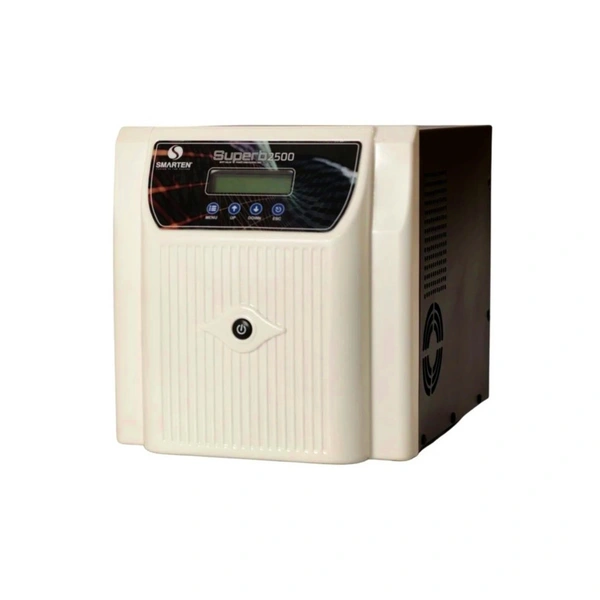

Smarten Superb 2500VA 24V 50A MPPT Solar PCU

• Advanced MPPT Solar Technology
• 50A MPPT Solar Charge Controller
• 2000 Watt Panel Support
• Runs 1 HP submersible Pump some reputed brand
• Runs 1 Ton 5 Star Inverter AC
• Grid Charging Enable/Disable For reduce Electricity Bills
• 2 Years warranty

LCD DISPLAY
Mains Input Voltage, Battery Voltage, Mains Fuse Blown, Solar Power Available or Not, Reverse PV/High PV Voltage, Mains Current,
Solar Current, Battery Current, Solar charging current, PCU ON OFF,
Load %, Short Circuit Over Load, Wiring Fault, Battery Low,
Battery High, Out Put Voltage, High Temp., Output Frequency
(Display Values can be different 2% from the RMS actual values)


SOLAR CHARGE CONTROLLER
50A  ± 3A MPPT Solar Charge Controller
VOC 85V  (Voltage Open Circuit)
Panel Support 2000W
575W 4 Panel Supports
MPPT to PV power connecting up to 15 seconds


OUTPUT  BACKUP MODE
Battery Low Cut warning 21.4V ± 0.2V
Battery Low Cut Off          21.0V ± 0.2V
No Load Current @ 24V     1.5A ± 0.2A
Wave form                         Pure Sine Wave
Frequency                          50 ± 0.1 Hz
Battery Disc. Current        70 ±2Amp.
AC Output Load                  7.0A
Over Load system Shutdown at 130% Load after approx. >60 Sec


AC MAINS MODE
Grid Charging Cur. (Tubular/LA) 15A DC ± 2A
Battery Boost Vol. Lead acid       28V ± 0.2V
Battery Boost Voltage SMF/TUB 29V ± 0.2V
Battery Float Voltage                   27.4V ± 0.2V
Battery Deep Discharge Recovery Yes
UPS Mode
Mains AC Low cut                          175V ± 10V
Mains AC Low cut recovery          185V ± 10V
Mains AC High cut                         265V ± 10V
Mains AC High cut recovery         255V ± 10V
W.UPS Mode
Mains AC low cut                            90V ± 10V
Mains AC Low cut recovery         110V ± 10V
Mains AC High cut                        295V ± 10V
Mains AC High cut recovery        285V ± 10V


DOD SWITCH SELECTION (Battery Depth Of Discharge)
DOD 20%  when battery Voltage 25V ± 0.2V Mains Will be connected
DOD 30%  when battery Voltage 24V ± 0.2V Mains Will be connected
DOD 40%  when battery Voltage 23V ± 0.2V Mains Will be connected
DOD 50%  when battery Voltage 22V ± 0.2V Mains Will be connected


MAINS DISCONNECTED, CONNECTED SELECTION
If solar is available and battery reaches 28V ± 0.2V after <5 min. Mains will be disconnected,
When battery voltage reaches Permitted DOD voltage and solar power not available mains will be Connected.
