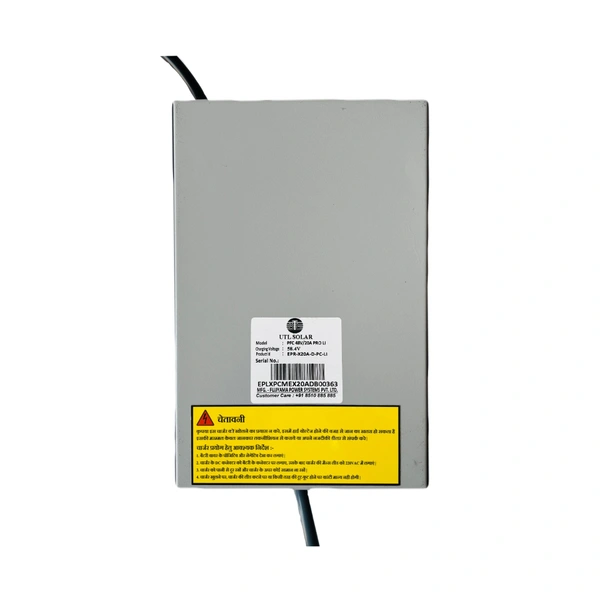

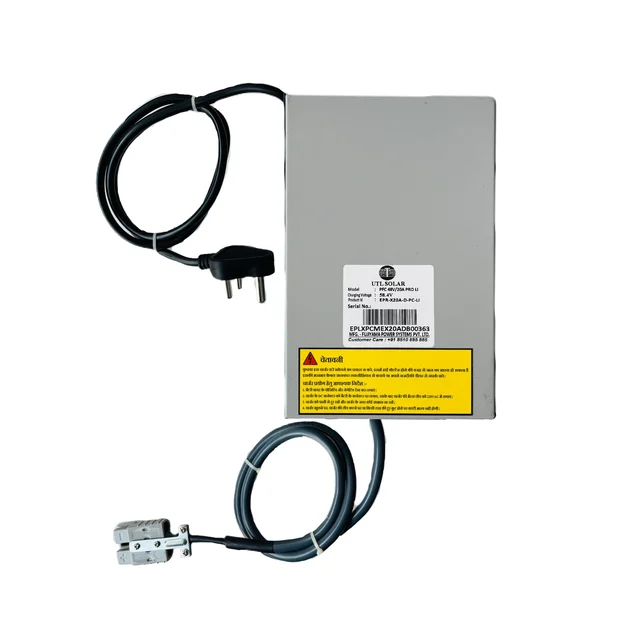

UTL 48V 20A PRO LI E-Rickshaw Lithium Battery Charger

UTL E-Rickshaw Battery Charger is highly reliable, efficient and easily installable. It is provided with various protection features which make it highly reliable. It can provide efficiency up to 90%. User can easily connect the charger with the batteries without any hustle. It has the capability to charge a battery which goes into the deep discharge condition. This is one of the features which make it different from other brands.

• High-Efficiency SMPS Based Charger
• Deep discharge charging capability
• Intelligent with a powerful microcontroller
• Digital meter
• Protections

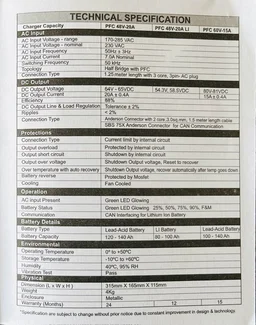

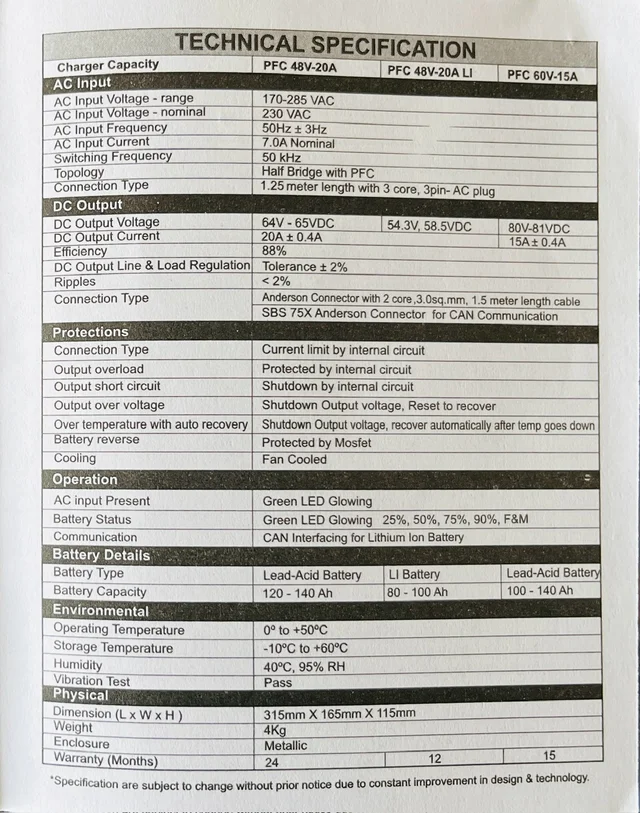

Technical Specifications

Charger
48V/20A Li

AC INPUT

AC Input Voltage Range
160-280V

AC Input Frequency
50 Hz ± 3Hz

AC Input Current
7A

Connection Type
1.5 Meter Length with 3 Core, 3 Pin Power Plug

DC OUTPUT

DC Charging Voltage (High Cut)
58.4V DC

DC Charging Current
20A

Peak Efficiency
91%

Connection Type
Anderson Connector with 2 Core 4 Sq. mm, 1.5 Meter Cable Length

PROTECTIONS

Connection Type
Current Limit by Internal Circuit

Output Over Current
Protected by Internal Circuit

Output Short Circuit
Shutdown by Internal Circuit

Output Over Voltage
Shutdown Output Voltage, Reset to Recover

Over Temperature with Auto Recovery
Shutdown Output Voltage, Recover automatically after temp. goes down

Battery Reverse
Protected by Relay

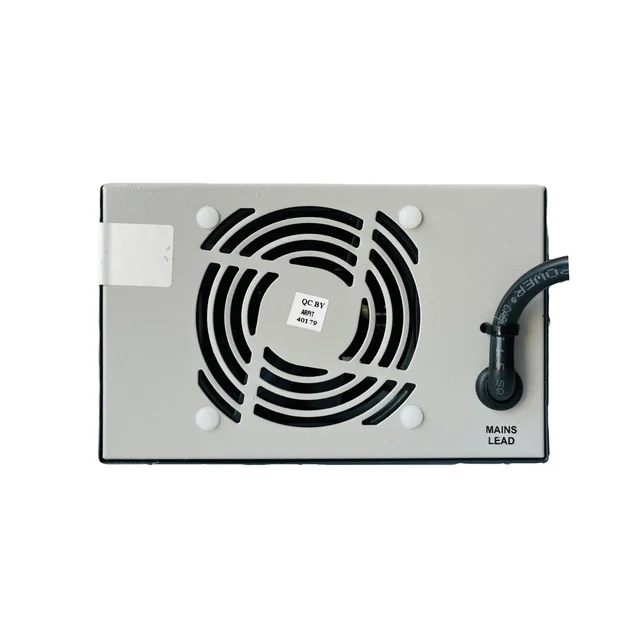

Cooling
Fan Cooled

OPERATION

AC Input Present
Green LED Glowing

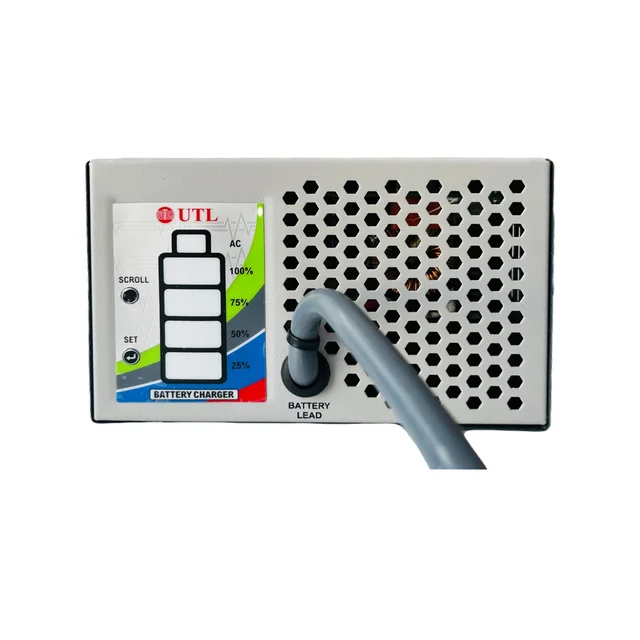

Battery Status LED/Bar Graph
25%  50%  75%  F&M

Dimensions
34x21.8x18.5 CM

Weight
3.7 KG

Warranty
15 Months

Manufactured by
Fujiyama Power Systems Pvt. Ltd.
